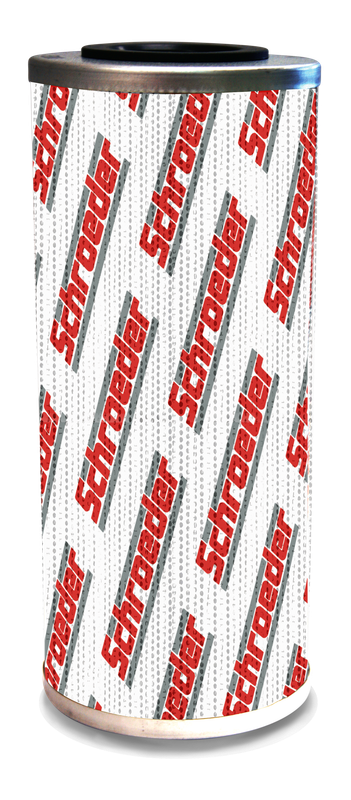

The Schroeder Industries KZ10 filter element is designed for hydraulic and lubrication systems, offering superior filtration performance. It utilizes advanced Excellement Z-Media synthetic material to deliver high-efficiency particle removal with a nominal rating of 10 microns. Built for durability, this element withstands pressures up to 150 psi and temperatures ranging from -29C to 107C. Ideal for use with Schroeder filter housings, it ensures reliable protection for your equipment.
- Nominal filter rating of 10 microns with 99.9% efficiency
- Beta ratio of 1000 ensures exceptional contaminant retention
- Operating pressure up to 10.3 bar (150 psi) and temperature range from -29C to 107C
- Buna seal material for reliable sealing and leak prevention
- Lightweight design at 0.82 kg (1.8 lb) for easy handling and installation
| Type | Hydraulic and Lube Filters |
| Style | Elements |
| Series | K |
| Media Type | Excellement Z-Media (Synthetic) |
| Nominal Filter Rating | 10 m |
| Connection Type | Seal |
| Seal Material | Buna |
| Beta Ratio | 1000 |
| Efficiency | 99.9% |
| Filter Rating - Beta Ratio | 10 |
| Operating Pressure [Max] | 10.3 bar / 150 psi |
| Operating Temperature [Min] | -29 C / -20 F |
| Operating Temperature [Max] | 107 C / 225 F |
| Weight | 0.82 kg / 1.8 lb |
| Use With | Schroeder Filter Housing |
| Designation | Single Length |
| Quality Protection | None |
