This industrial-grade miniature pressure regulator is designed to deliver precise, unwavering downstream control despite volatile primary supply line fluctuations. Featuring a heavy-duty balanced construction and an adjustable screw handle, it allows operators to calibrate specific circuit parameters effortlessly. The high-sensitivity internal spring assembly responds instantly to variable flow demands, maintaining pressure equilibrium across downstream tools.
The robust metallic housing protects the internal diaphragm and calibration mechanics from harsh manufacturing environments and structural vibrations. By eliminating hazardous over-pressurization risks, this module optimizes compressed air consumption, improves process accuracy, and safeguards sensitive pneumatic components. It ensures long-term calibration stability and trouble-free operation in advanced automation systems.
- Rugged reinforced housing blocks external mechanical impacts, defending fine internal calibration springs from factory hazards.
- Balanced valve architecture provides exceptionally accurate downstream regulation, completely compensating for primary supply fluctuations.
- High-sensitivity internal diaphragm adapts immediately to flow changes, preventing localized pressure instability across circuits.
- Compact inline port configuration enables seamless integration into diverse automated system backplanes and control panels.
- Finely threaded adjustment screw enables precise set-point calibration, minimizing drift caused by vibration and operational stress.
- Integrated pressure venting capability safely relieves downstream overpressure, protecting tools and operators from damage risks.
- High-accuracy components retain calibration stability over long operating cycles, significantly reducing maintenance requirements.

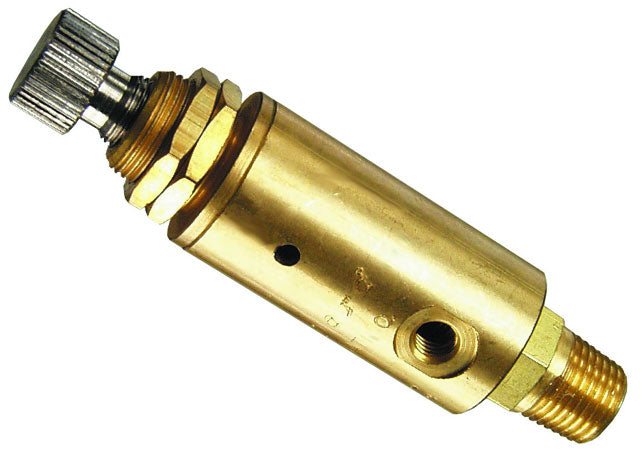

| Part No | MAR-1P-3 |
| Product Type | Pressure Regulator, 1/8" NPT Inlet |
| Supplier Name | Clippard Instrument Laboratory, Inc. |
| Application | Point-of-use pressure adjustment and instrumentation stabilization in pneumatic networks |
| Function | Reduction and steady regulation of varying inlet pressures to fixed output parameters |
| Compatibility | Standard industrial air filters, precision test gauges, and localized logic lines |
| Installation Type | Inline threaded connection or direct through-panel bracket mounting configurations |
| Compatible Media | Compressed air, technical diagnostic gases, and non-corrosive system fluids |
| Material | Die-cast brass body structure housing an engineered synthetic elastomer diaphragm |
| Operating Condition | High-precision automated systems requiring stable pressure delivery under dynamic flow variation |
| Performance Feature | Low hysteresis regulation curve combined with superior calibration retention characteristics |
