This professional-grade sub-miniature check valve is engineered to provide absolute unidirectional flow control within low-profile pneumatic circuits. Manufactured to exacting engineering tolerances, its high-strength compact housing resists thread deformation and physical fatigue under persistent pressure spikes. The highly sensitive internal sealing disc lifts effortlessly under low cracking pressures, allowing full forward fluid acceleration.
By executing immediate, leak-free shut-off upon reverse flow detection, this component guards sensitive upstream instruments against damaging backpressure loops. Its miniature profile is perfect for routing flexible tracks within hyper-dense control cabinets where spacing constraints are critical. This durable inline valve lowers plumbing labor, prevents circuit cross-contamination, and delivers an extensive service lifespan.
- Tough alloy composition resists extreme structural stresses, ensuring complete casing integrity under severe dynamic pressure spikes.
- Precision internal bore allows smooth, unrestricted forward fluid velocity to maximize attached actuator responsiveness.
- High-reliability synthetic seal seats block reverse flow instantly, protecting continuous circuit pressure stability and safety.
- Ultra-compact micro-port configuration integrates easily with analytical instrumentation platforms, medical devices, and logic arrays.
- Inline threaded port connection removes the need for additional bulky bracketry, accelerating line installation steps.
- Heavy-duty internal spring assembly ensures continuous positive closure, eliminating erratic bypass leaks in vertical layouts.
- Non-degrading internal elements resist systemic wear over prolonged deployment cycles, yielding lower component ownership expenses.

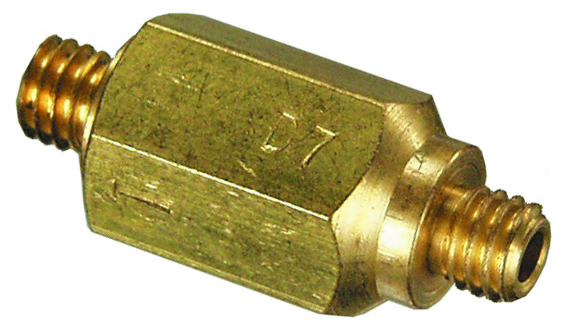

| Part No | MCV-1AA |
| Product Type | Check Valve, #10-32 Ports |
| Supplier Name | Clippard Instrument Laboratory, Inc. |
| Application | Backpressure isolation and directional control in micro-pneumatic fluid circuits |
| Function | Automatic single-direction flow management with an absolute zero-leak reverse block |
| Compatibility | Standard #10-32 male threaded fittings and flexible micro-bore polymer tubing |
| Installation Type | Inline threaded fluid connection for space-saving localized positioning workflows |
| Compatible Media | Filtered compressed air, inert laboratory gases, and low-viscosity neutral liquids |
| Material | Premium nickel-plated brass base core with synthetic rubber internal sealing discs |
| Operating Condition | Analytical test equipment or high-density panels demanding absolute backflow containment |
| Performance Feature | Minimal cracking pressure rating paired with instantaneous positive backward seating responses |
