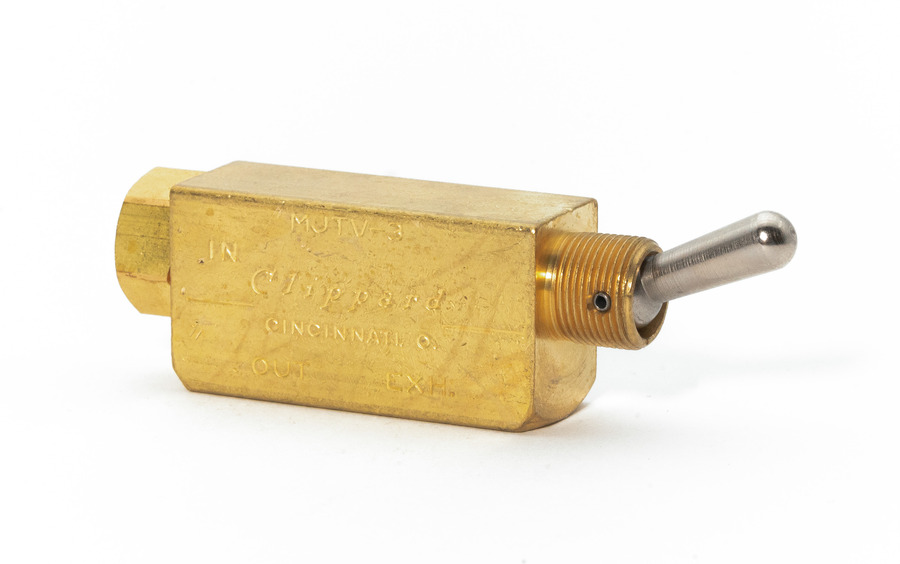

The MJTV-3 is a compact, manually actuated 3-way toggle valve with 1/8 NPT ports, designed for reliable control in pneumatic systems. Featuring a Normally-Closed configuration, it operates using a nickel-plated steel toggle that offers crisp detent action for quick switching. Built with a brass body and stainless steel internal components, the MJTV-3 delivers durability, high flow capacity, and precise control for a wide range of automation and fluid handling applications.
- 3-Way Normally Closed Design: Controls air flow between inlet, outlet, and exhaust
- Manual Toggle Operation: Fast, intuitive switching with positive detent
- 1/8" NPT Ports: Standardized for easy integration
- Durable Materials: Brass body with stainless steel stem and spring
- Versatile Compatibility: Suitable for air, water, oil, and compatible fluids
- High Flow Output: Up to 710 L/min @ 100 psig
- Wide Temperature Range: Operates from 32F to 230F
- Mounting Hardware Included: Nut and lockwashers provided
- Seal Options Available: Nitrile standard; FKM or Krytox optional for specialty use
| Function | 3-Way, Normally Closed |
| Actuation Style | Manual Toggle |
| Port Size | 1/8" NPT (Inlet & Outlet) |
| Body Material | Brass |
| Seal Material | Nitrile (Optional: FKM or Krytox) |
| Toggle Material | Nickel-Plated Steel |
| Spring & Stem Material | Stainless Steel |
| Mounting Thread | #15/32-32 |
| Operating Pressure | Up to 300 psig |
| Flow Rate | 400 L/min @ 50 psig; 710 L/min @ 100 psig |
| Temperature Range | 32F to 230F (0C to 110C) |
| Medium | Air, Water, Oil |
| Force to Rotate Toggle | ~16 oz nominal |
| Weight | Approx. 0.3 lbs |
| Included Items | Nut & Lockwashers |
