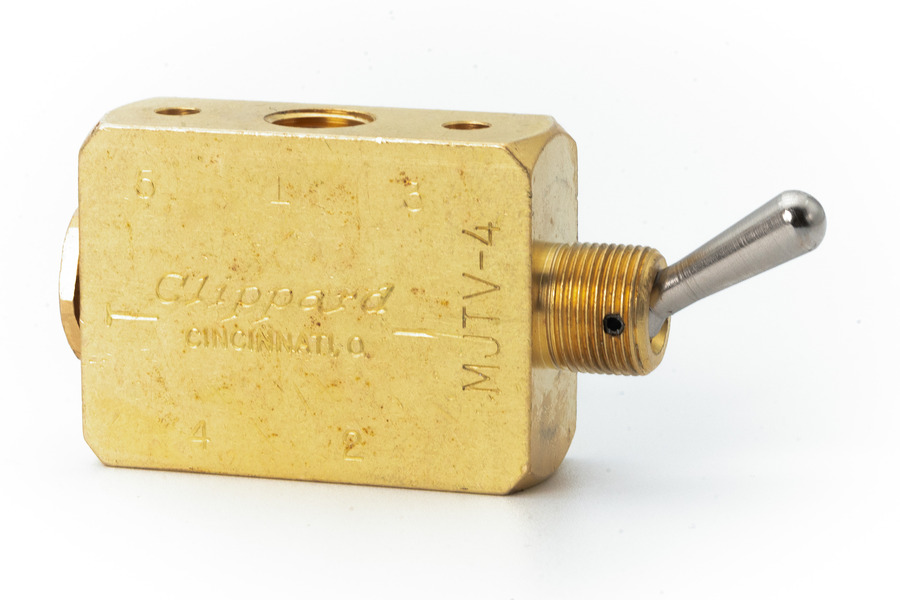

The MJTV-4 is a compact, manually actuated 4-way toggle valve featuring 1/8 NPT ports and a Normally-Closed configuration. Designed for directing flow in pneumatic circuits, this valve provides reliable switching between inlet, outlet, and exhaust ports. Its detented toggle lever ensures firm, responsive actuation. Engineered with a brass body and stainless steel internal components, the MJTV-4 is well-suited for industrial automation, cylinder control, and fluid routing systems.
- 4-Way Normally-Closed Functionality: Enables bi-directional control of actuators
- Manual Toggle Operation: Positive detent provides firm switching action
- 1/8 NPT Ports: Standard threads for easy integration into pneumatic systems
- Durable Build: Brass body with stainless steel stem and spring
- High Media Compatibility: Works with air, water, oil, and compatible fluids
- Optional Seal Materials: Nitrile standard; FKM or Krytox available for demanding environments
- Compact Design: Ideal for tight installations
- Mounting Hardware Included: Includes nut and lockwashers for secure mounting
| Function | 4-Way, Normally Closed |
| Actuation Type | Manual Toggle |
| Port Size | 1/8 NPT (Inlet & Outlet) |
| Body Material | Brass |
| Seal Material | Nitrile (FKM or Krytox optional) |
| Toggle Material | Nickel-Plated Steel |
| Spring & Stem Material | Stainless Steel |
| Mounting Thread | #15/32-32 |
| Operating Pressure | Up to 150 psig |
| Input Pressure Rating | 300 psig Max |
| Flow Rate | 170 L/min @ 50 psig; 280 L/min @ 100 psig |
| Temperature Range | 32F to 230F (0C to 110C) |
| Compatible Media | Air, Water, Oil |
| Force to Rotate Toggle | Approx. 12 oz nominal |
| Weight | Approx. 0.39 lbs |
| Included Items | Nut & Lockwashers |
