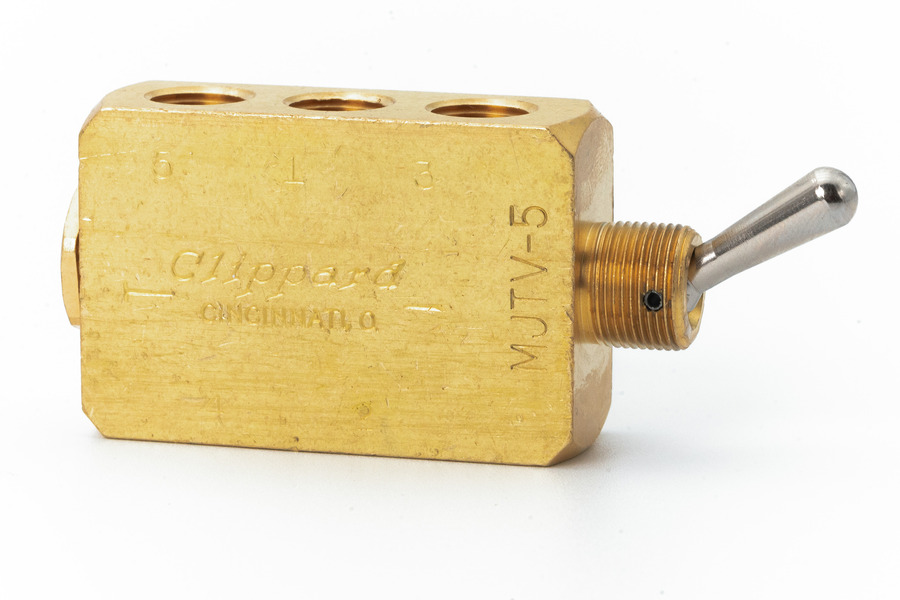

The MJTV-5 is a manually actuated 4-way toggle valve with 1/8 NPT ports, designed to control the direction of air flow in pneumatic systems. With a fully ported, detented toggle mechanism, this valve enables precise switching between four ports, making it ideal for applications requiring control of double-acting cylinders or bi-directional actuators. Constructed from durable brass with stainless steel internal components and a nickel-plated steel toggle, the MJTV-5 provides long-lasting performance in demanding environments.
- 4-Way Fully Ported Configuration: Directs air flow through four separate ports
- Manual Toggle Control: Simple, tactile actuation with positive detent
- 1/8 NPT Ports: Easy in-line installation
- Durable Construction: Brass body, stainless steel stem and spring
- Compatible with Various Media: Suitable for air, water, oil, and other non-corrosive fluids
- Optional Seal Materials: Standard Nitrile; optional FKM or Krytox for chemical resistance and high-temp use
- Compact & Lightweight: Designed for space-constrained systems
- Threaded Exhaust Option: Allows for dual inlet pressure configuration
- Mounting Hardware Included: Nut and lockwashers provided
Function | 4-Way, Fully Ported |
Actuation Style | Manual Toggle |
Port Size | 1/8 NPT (Inlet & Outlet) |
Body Material | Brass |
Seal Material | Nitrile (Optional: FKM or Krytox) |
Toggle Material | Nickel-Plated Steel |
Spring & Stem Material | Stainless Steel |
Mounting Thread | #15/32-32 |
Operating Pressure | Up to 150 psig |
Input Pressure Rating | 300 psig Max |
Flow Rate | 180 L/min @ 50 psig; 295 L/min @ 100 psig |
Temperature Range | 32F to 230F (0C to 110C) |
Medium Compatibility | Air, Water, Oil |
Force to Rotate Toggle | ~16 oz nominal |
Weight | Approx. 0.42 lbs |
Included Items | Nut & Lockwashers |
