This industrial-grade sub-miniature needle valve is engineered to deliver fine micro-meter flow regulation and precise speed control within low-volume pneumatic circuits. Machined from top-tier, corrosion-proof brass components, its compact housing handles continuous operating pressures and high-frequency adjustments without thread deformation. The integrated adjustment knob allows operators to execute incremental flow calibrations easily.
Designed for convenient inline placement, this low-profile regulation valve eliminates complex piping layouts and system bulk in dense automation arrays. Its advanced internal sealing architecture isolates fluid media completely, preventing unexpected actuator drift and pressure drops. This resilient needle valve requires virtually zero maintenance, ensuring an extensive, leak-free operating service life.
- Premium machined brass body provides exceptional structural strength and complete protection against harsh factory atmospheric corrosion.
- Micro-tapered internal stem configuration enables fine flow tuning to ensure perfectly synchronized cylinder travel profiles.
- Precision mechanical thread tolerances maintain strict set-point calibration, avoiding drift caused by intense machinery vibration.
- Sub-miniature compact footprint permits clean integration into custom logic blocks, manifold arrays, and tight panels.
- Large knurled adjustment knob allows rapid tool-free manually calibrated tuning adjustments during system testing phases.
- Advanced internal sealing rings maintain full pressure containment, minimizing energy losses and enhancing plant safety.
- Wear-resistant internal elements resist systemic wear over prolonged deployment cycles, yielding lower component ownership expenses.

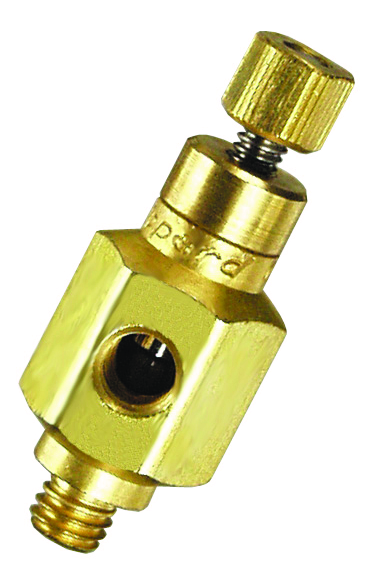

| Part No | MNV-3K |
| Product Type | Needle Valve, #10-32 Ports with Knob |
| Supplier Name | Clippard Instrument Laboratory, Inc. |
| Application | Fine flow throttling and precise actuator speed regulation in micro-pneumatic networks |
| Function | Manual fine micrometer fluid flow adjustment and positive mechanical variable restriction |
| Compatibility | Standard #10-32 male threaded fittings and flexible micro-bore polymer tubing |
| Installation Type | Inline threaded port connection for space-saving localized positioning workflows |
| Compatible Media | Filtered compressed air, inert laboratory gases, and low-viscosity neutral fluids |
| Material | Machined brass body with internal stainless steel needle pins and synthetic seals |
| Operating Condition | High-density automated control panels demanding maximum space optimization and cycling frequency |
| Performance Feature | Multi-turn high-resolution flow adjustment scaling balanced with an absolute zero-leak seat |
