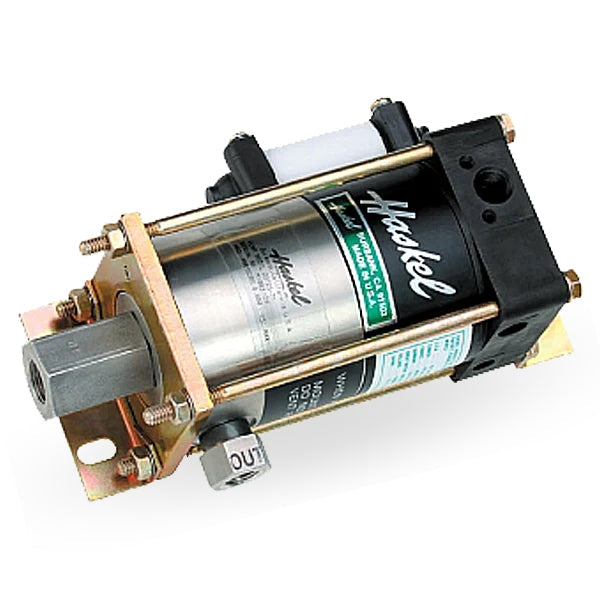

1/3 HP Stainless Steel Air Driven Liquid Pump, 188:1, 15000 Psi Maximum Working Pressure
- Proven to be safe, robust, reliable, compact, and easy to maintain, Haskel pneumatic-driven liquid pumps provide a number of operational benefits:
- Up to 100,000 psi (7000 bar) capability
- Safe pneumatic operation – no heat, flame or spark risk
- ATEX certified
- Infinitely variable cycling speed
- Stall feature at pre-determined pressure to hold that pressure without consuming power
- Problem-free stop/start applications
- Easily automated, with many modification and control options available
- Suitable for most liquids and liquefied gases
- No need for air-line lubrication, which saves costs and prevents contamination
| Outlet Port: | 1/4" NPT |
| Inlet Port: | 3/8" NPT |
| Nominal Ratio | 188 |
| Max Air Drive | 125 |
| Horsepower | 0.33 |
| Actual Ratio | 217 |
| Max Continuous Pressure (PSI) | 15000 |
| Max Intermittent Pressure (PSI) | 15000 |
| Max CPM | 325 |
| Displacement (cu-in) | 0.023 |
