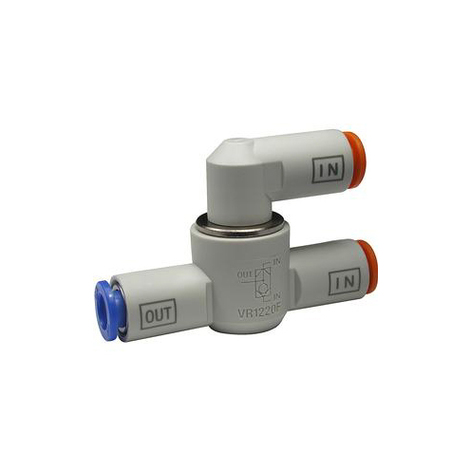

This compact 3-port shuttle valve routes whichever input line has higher pressure to the outlet port using an internal shuttle mechanism. Featuring a corrosion-resistant aluminum body and nitrile seals, it operates from vacuum (0.05?MPa) up to 1.0?MPa (145?psi). Flexible mounting orientation allows easy integration, and internal flow coefficient (Cv) ranges between 0.380.81. Designed for pneumatic signal logic and pressure switching without external power. RoHS-compliant and ideal for control systems in automation.
- Shuttle design automatically selects the higher-pressure input
- 3-port configuration: two inputs and one OR-ed output
- High-pressure capability: up to 1.0?MPa (145?psi); burst margin not specified
- Effective flow range: Cv 0.380.81 depending on model
- Operating temperature: 5 to +60?C (23140?F)
- Compact, light aluminum body with " NPT ports and nitrile seals
- No fittings required; oriented mounting flexibility
| Valve Type | Shuttle Valve |
| Port Configuration | 3 1/4" NPT (female) |
| Pressure Range | 0.05?MPa to 1.0?MPa (7.25145?psi); vacuum-compatible |
| Flow Coefficient (Cv) | 0.38 to 0.81 |
| Operating Temperature | 5?C to +60?C (23?F to 140?F) |
| Body Material | Aluminum |
| Seal Material | Nitrile Rubber (NBR) |
| Mounting Orientation | Universal gravity-independent (any position) |
| Weight | ~0.045?kg (0.099?lb) |
| Standards & Compliance | RoHS compliant |
