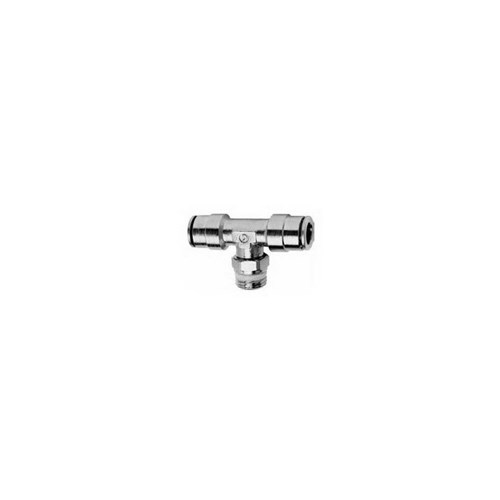

This professional-grade industrial branch tee swivel fitting is designed to split a single threaded male pipe input path into dual orthogonal push-in tube pathways. Fabricated from premium alloy bases and wear-proof technical polymers, it withstands constant dynamic pressure fluctuations and external shocks without seam degradation. The precision locking interface ensures positive, airtight line retention under demanding cycling loads.
The integrated 360-degree swivel core enables versatile directional alignment during system plumbing, significantly streamlining dense circuit tracking. The internal flow geometries are meticulously optimized to distribute fluid velocities evenly, minimizing localized pressure drop across branches. This robust swivel tee drastically reduces discrete fitting counts and maximizes field installation productivity.
- Heavy-duty nickel-plated brass base provides exceptional thread strength and corrosion resistance in punishing plant environments.
- Symmetrical internal channels split air streams evenly, avoiding performance-limiting pressure drops or erratic volumetric flow.
- Stainless steel grab ring ensures positive tube retention, eliminating dangerous pull-out failures under high pressure.
- Multi-directional branch layout facilitates flexible multi-way fluid distribution, allowing streamlined routing profiles in intricate networks.
- Simple push-in engineering removes the need for specialized assembly tools, accelerating complex machinery wiring.
- Positive internal compound seals isolate continuous pneumatic pressures completely, supporting safe operator environments and efficiency.
- Low-profile construction fits easily into ultra-dense pneumatic control panels, optimizing valuable machine real estate efficiently.
| Part No | P6430-53-02 |
| Product Type | 5/32" TUBE X 1/8" MNPT SWVL BRANCH TEE |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Symmetrical line splitting and dual-branch distribution on pneumatic control blocks |
| Function | Branch adaptation of a single female 1/8-inch NPT port into dual 5/32-inch push-in paths |
| Compatibility | Calibrated fractional 5/32-inch outside diameter polymer tubing and standard 1/8-inch female ports |
| Installation Type | Threaded male NPT shank with dual orthogonal quick-connect push-in ports |
| Compatible Media | Filtered compressed air, low-pressure non-hazardous system gases, and vacuum loops |
| Material | Nickel-plated brass threaded base, structural technopolymer branch body, and synthetic seals |
| Operating Condition | High-density automated networks requiring multi-directional line tracking and high vibration immunity |
| Performance Feature | Symmetrical 360-degree branch head rotational adjustment capability combined with zero-leak performance |
