This heavy-duty straight male connector is built to establish a reliable, high-integrity connection between fixed female component ports and flexible pneumatic tubing. Machined from high-grade, corrosion-resistant metallic materials, it handles extreme thread torque and severe mechanical stress without structural distortion. The precision-cut male threads ensure perfect structural alignment and an absolute seal against fluid pressure loss.
The straight, full-bore internal configuration permits unrestricted volumetric flow rates, maximizing the speed and power delivery of downstream pneumatic actuators. Engineered for high-vibration applications, this robust fitting maintains its sealing performance under constant operational shifting. It is an essential component for heavy industrial machinery, assembly lines, and primary air supply distribution networks.
- Heavy-duty structural metal composition offers superior resistance to mechanical wear and guards against accidental impact damage.
- Straight full-bore internal channel allows completely unrestricted air velocity to optimize pneumatic cylinder response times across systems.
- High-grade thread integration prevents fugitive compressed air emissions, defending continuous operating pressures and reducing energy waste.
- Robust interface safely bridges main supply manifolds directly to flexible distribution lines across complex automated machinery layouts.
- Exterior hex geometry allows straightforward wrench tightening during final assembly, preventing thread stripping or configuration deformation.
- High-pressure balanced engineering guards against catastrophic fitting blowouts, preserving operator protection under intense system loading.
- Fatigue-resistant threads tolerate repeated component installation and removal cycles, yielding an extended operational service life.

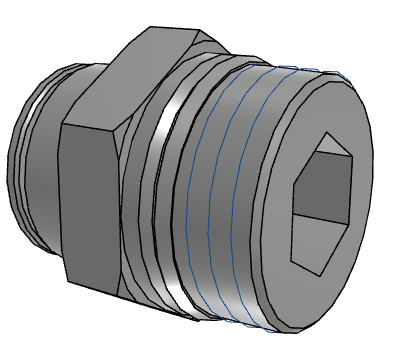

| Part No | P6510-08-08 |
| Product Type | 1/2" TUBE X 1/2" MNPT STRT |
| Supplier Name | Camozzi Automation, Inc. |
| Application | High-capacity main supply line connections and cylinder port transitions in heavy machinery |
| Function | Rigid adaptation of 1/2-inch female NPT ports to 1/2-inch flexible tubing |
| Compatibility | Standard 1/2-inch fractional tubing and any 1/2-inch industrial female NPT interface |
| Installation Type | Threaded male connection paired with an instantaneous push-in opposite port |
| Compatible Media | Compressed air, technical process gases, and low-pressure neutral fluids |
| Material | Premium nickel-plated brass base construction with robust synthetic nitrile seals |
| Operating Condition | Demanding production facilities subject to high mechanical vibrations and continuous operation |
| Performance Feature | High-torque threaded stability balanced with a zero-leak internal sealing architecture |
