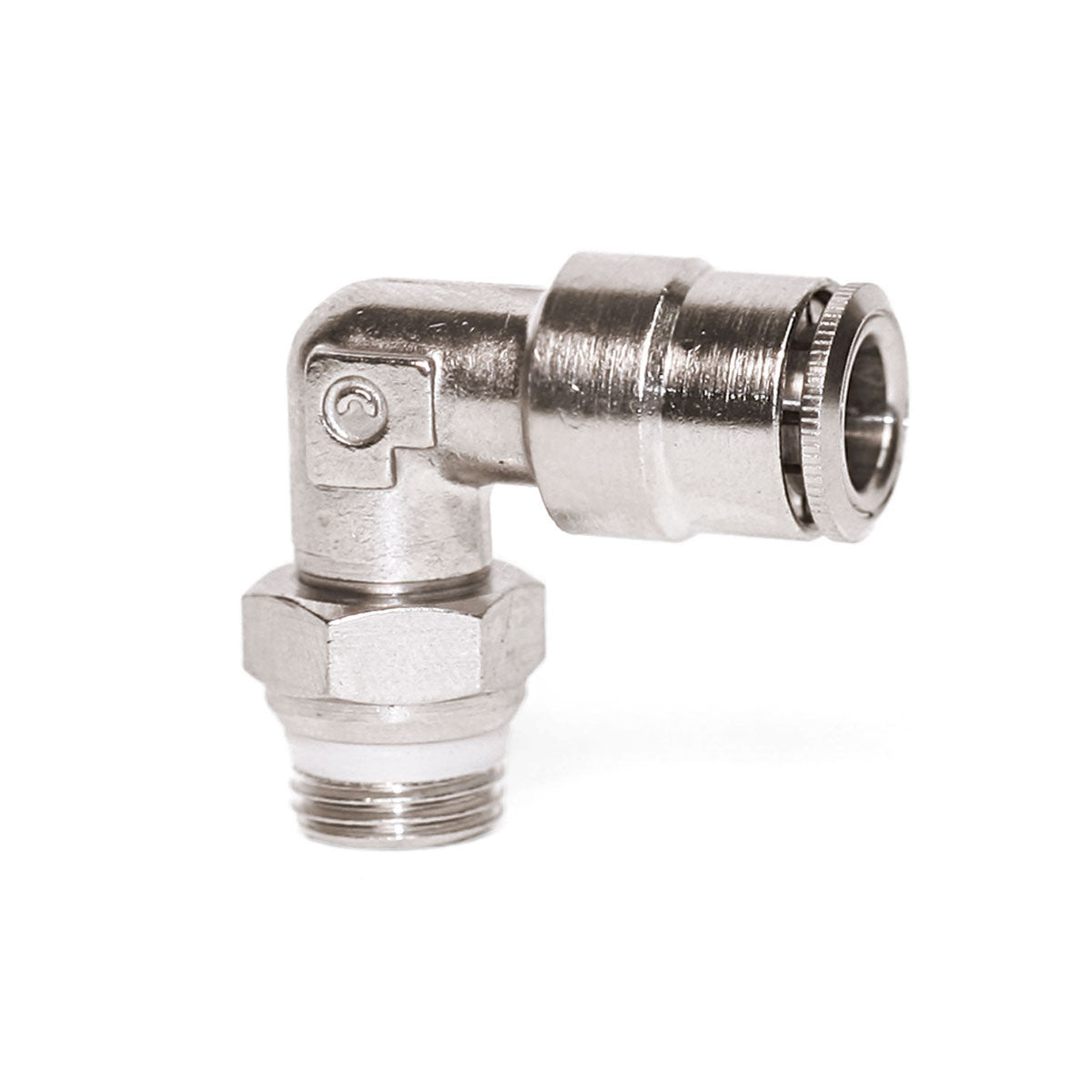

P6520-02-04 1/8" Tube x 1/4" Profit Swivel 90-Degree Elbow is designed to provide secure right-angle path adaptations and flexible line transitions inside automated instrumentation grids. Manufactured by Camozzi Automation, Inc., this all-metal elbow coupling links fine micro-tubing lines securely to larger 1/4" circuit ports. Its tough all-metal housing withstands continuous vibration strain and tool impacts, improving layout design options, cabinet plumbing workflow organization, and hardware lifecycles in moving automated assembly systems.
The robust right-angle swivel frame allows convenient installation into pilot control blocks, distribution sub-plates, and machine panel boxes. Suitable for industrial automation setups, this component provides dependable leak-free corner execution.
- Precision corner adapter ensures unhindered right-angle flow performance
- Forged nickel-plated brass architecture offers exceptional structural durability
- 1/8 inch quick-connect port allows smooth micro-tube management
- Universal male Profit thread base establishes an airtight hold without thread sealant
- Streamlined right-angle fluid path reduces tight hose bend stress to increase line lifespan
| Item ID | P6520-02-04 |
| Product Type | Profit Swivel 90° Elbow |
| Connections | 1/8" Tube x 90° 1/4" NPT Profit |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Pilot Circuit Valve Blocks and Panel Plumbing |
| Kit Function | 90-Degree Adjustable Directional Routing |
| Compatibility | Standard 1/8" OD Polymer Tubing |
| Installation Type | Threaded Male Swivel Connection |
| Compatible Media | Compressed Air Systems |
| Valve Type | Swivel Elbow Fitting |
| Material | All-Metal Nickel-Plated Brass Shell |
| Pressure Rating | Max 232 PSI Operation |
