This professional-grade 90-degree swivel elbow fitting provides a dependable, leak-free connection for adaptive fluid line tracking in compressed air distribution layouts. Built with a high-strength polymer upper body and a precision-machined threaded metallic shank, it handles extreme lateral strain and high operational pressures without joint degradation. The integrated push-in locking mechanics allow for instant, tool-free tube insertion and permanent retention.
The integrated 360-degree swivel interface allows for perfect directional orientation and alignment during assembly, simplifying complex routing pathways. The right-angle internal bore is aerodynamically swept to eliminate restrictive air turbulence, avoiding performance-limiting pressure drops. This durable elbow fitting reduces installation labor, eliminates tube kinking, and ensures a prolonged, maintenance-free service life.
- Toughened composite-to-metal housing layout guarantees exceptional mechanical resistance against external side-loading and operational vibrations.
- Smooth right-angle interior profile eliminates restrictive fluid turbulence, ensuring maximum volumetric efficiency for pneumatic actuators.
- High-tensile stainless steel claw rings anchor lines permanently, preventing accidental tube detachment during intense dynamic surges.
- Full 360-degree swivel capability allows optimal angle adjustment, eliminating severe tube bending stress and kinking damage.
- Pre-applied thread sealant or precision face seals accelerate mounting, preventing over-tightening damage during initial installation.
- Positive internal compound seals isolate continuous pneumatic pressures completely, supporting safe operator environments and efficiency.
- Compact right-angle architecture enables neat low-profile plumbing configurations, maximizing available work envelope space safely.

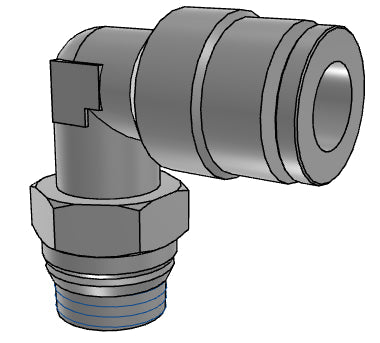

| Part No | P6520-04-02 |
| Product Type | 1/4" TUBE X 1/8" MNPT SWVL, ELBOW 90 |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Direct cylinder port connections and directional plumbing adjustments in tight spaces |
| Function | Right-angle adaptation of a female 1/8-inch NPT port to 1/4-inch flexible tubing |
| Compatibility | Standard fractional 1/4-inch outside diameter polymer lines and matching female threaded ports |
| Installation Type | Threaded male NPT base with an instantaneous push-in opposite port |
| Compatible Media | Industrial compressed air, low-pressure technical gases, and stable vacuum circuits |
| Material | Premium nickel-plated brass base, structural technopolymer elbow body, and NBR seals |
| Operating Condition | Dynamic factory automation machinery demanding adjustable tube exit orientations and high vibration immunity |
| Performance Feature | 360-degree rotational positioning capacity before final line tightening with zero leak rates |
