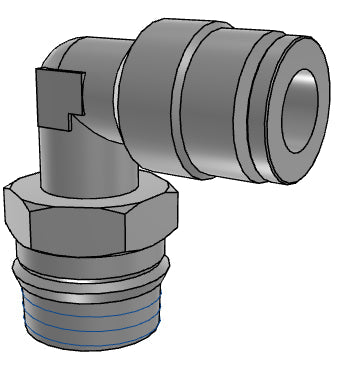

P6520-04-04

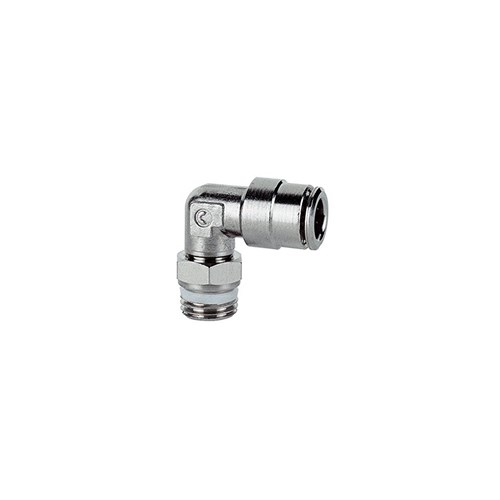

This industrial straight-to-elbow swivel fitting is designed to deliver reliable 90-degree transitions between female pipe threads and fractional polymer tubing. Precision-machined from high-grade metallic components and impact-proof polymers, it is built to resist cracking and structural fatigue under high dynamic pressures. The tool-free push-in port allows for instant tube insertion while ensuring an airtight hold across the joint.

Featuring a 360-degree swivel body, this fitting eliminates severe bending stress and kinking damage in flexible lines by adapting perfectly to moving machinery joints. The smooth internal bore geometry maximizes airflow delivery, optimizing the speed and responsiveness of attached pneumatic components. This robust swivel elbow speeds up initial machine assembly and guarantees long-term, leak-free operational performance.

• High-strength composite body defends against physical impacts and environmental stress cracking on high-speed production machinery.
• Smooth right-angle interior geometry eliminates restrictive air turbulence to preserve optimal downstream pressure and operational output.
• Precision-engineered gripping rings lock lines firmly into position, eliminating blowouts under severe, high-pressure dynamic surges.
• Symmetrical parallel geometry allows streamlined routing paths, optimizing line organization in tight machinery channels.
• Deep external hex shoulder enables secure wrench tightening during panel assembly, eliminating thread damage or fitting distortion.
• Advanced internal sealing rings maintain full pressure containment, minimizing energy losses and enhancing plant safety.
• Compact right-angle architecture enables neat low-profile plumbing configurations, maximizing available work envelope space efficiently.
