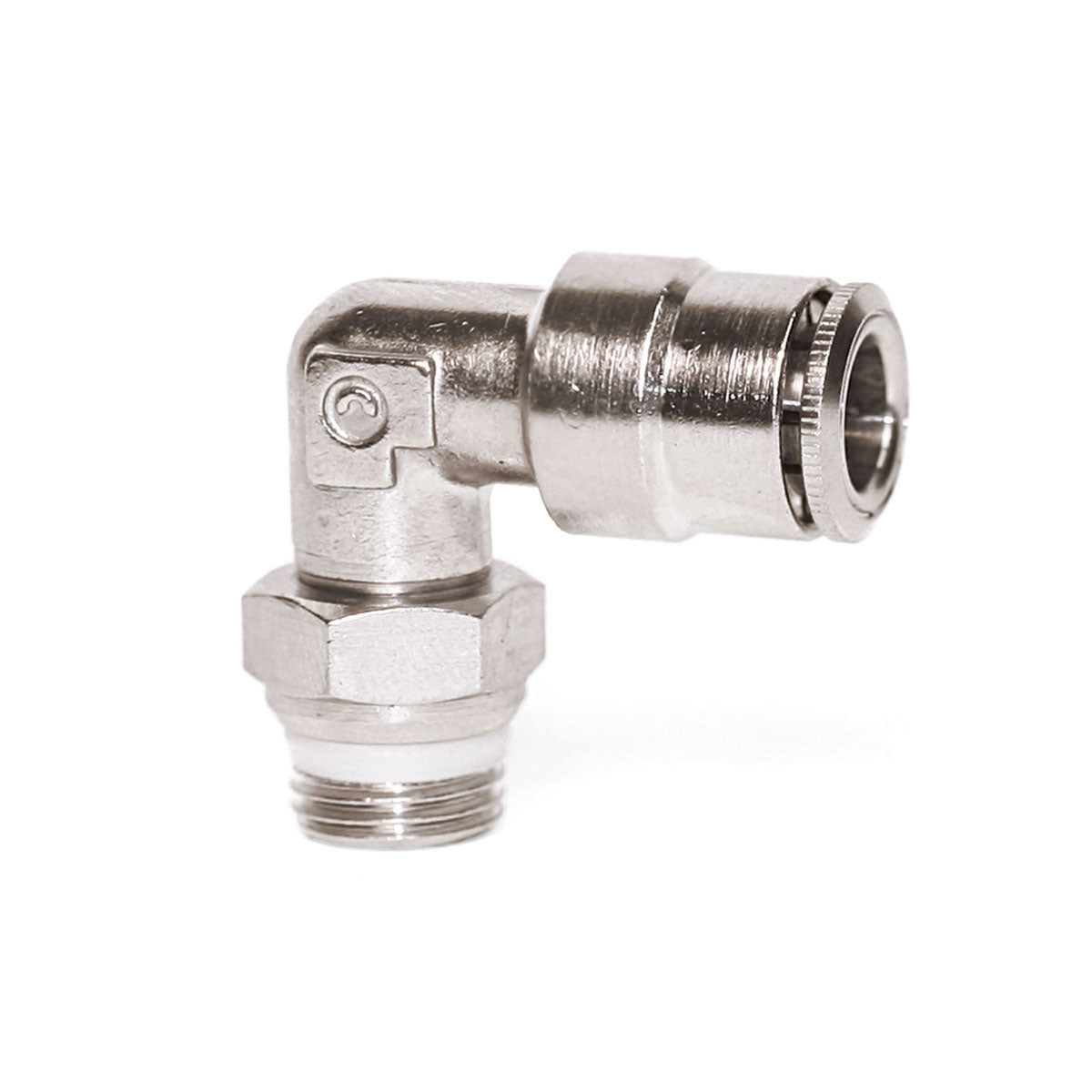

P6520-05-02 5/16" Tube x 1/8" Profit Swivel 90-Degree Elbow is crafted for secure corner routing and high-efficiency fluid path alignment in advanced automated packaging tracks. Manufactured by Camozzi Automation, Inc., the heavy-duty swivel fitting includes an internal metal gripper ring that provides a uniform circumferential lock on the hose sleeve. Its full inner-diameter layout preserves airflow velocity around sharp corners, improving cylinder stroke execution speeds, plumbing configuration neatness, and circuit reliability in active factory operations.
The space-saving elbow configuration allows convenient installation directly into compact air regulators, manifold plates, and small bore cylinder ports. Suitable for industrial automation lines, this component guarantees absolute sealing integrity under load.
- Dynamic 360-degree swivel joint allows optimal parallel line orientation after tightening
- Cold-forged metal body shell provides excellent resistance to workplace impact fractures
- 5/16 inch push-to-connect inlet allows fast line splicing
- Premium-grade internal Buna-N seals isolate compressed airflow from ambient moisture
- Clean inline right-angle profile minimizes external edge catching inside boxes
| Item ID | P6520-05-02 |
| Product Type | Profit Swivel 90° Elbow |
| Connections | 5/16" Tube x 90° 1/8" NPT Profit |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Packaging Track System Line Routing |
| Kit Function | 90-Degree Adjustable Directional Routing |
| Compatibility | Standard 5/16" OD Polymer Tubing |
| Installation Type | Threaded Male Swivel Connection |
| Compatible Media | Compressed Air Systems |
| Valve Type | Swivel Elbow Fitting |
| Material | All-Metal Nickel-Plated Brass Shell |
| Pressure Rating | Max 232 PSI Operation |
