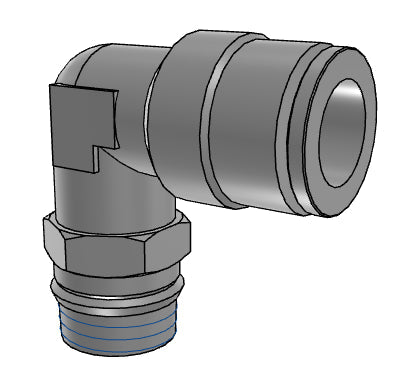

P6520-06-04

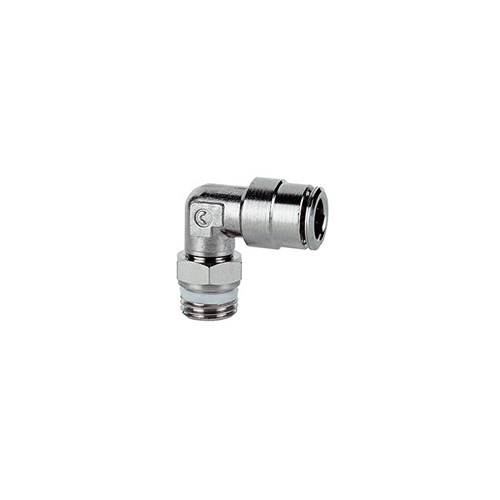

This premium 90-degree swivel elbow fitting combines a rugged male NPT pipe thread connection with a quick push-in tube port for efficient directional routing. Manufactured with a high-strength body and a robust metallic base, it offers exceptional resistance to mechanical wear, high pressures, and tough operating conditions. The integrated swivel joint permits complete 360-degree rotational freedom for easy alignment during machine plumbing.

Designed to eliminate fluid turbulence, this elbow fitting prevents pressure drops across sharp turns, ensuring constant power delivery to pneumatic cylinders. Its space-saving design is perfect for connecting lines in tight spaces. This durable swivel elbow simplifies maintenance and ensures long-term leak-free reliability.

• Tough composite-to-metal design delivers superior structural durability and resists cracking under heavy continuous vibration.
• Smooth right-angle interior profile eliminates restrictive fluid turbulence, ensuring maximum volumetric efficiency for pneumatic actuators.
• High-tensile gripping ring secures flexible lines firmly, preventing dangerous tube slip-outs under sudden pressure shocks.
• Full 360-degree swivel capability allows optimal angle adjustment, eliminating severe tube stress and kinking damage.
• Pre-coated male threads speed up structural assembly, ensuring a reliable leak-proof seal without extra tape labor.
• Advanced internal sealing rings maintain full pressure containment, minimizing energy losses and enhancing plant safety.
• Compact right-angle architecture enables neat low-profile plumbing configurations, maximizing available work envelope space.
