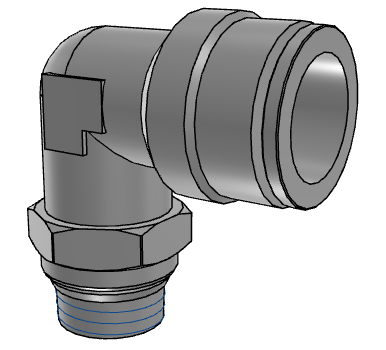

P6520-08-04

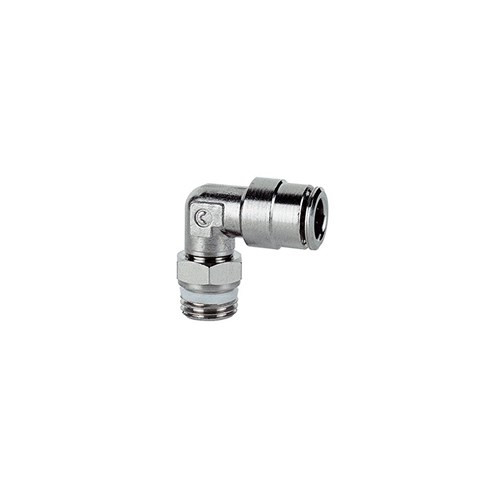

This heavy-duty 90-degree swivel elbow fitting provides a dependable, leak-free connection for adaptive fluid line tracking in high-capacity compressed air distribution layouts. Built with a high-strength polymer upper body and a precision-machined heavy-duty threaded metallic shank, it handles extreme lateral strain and high operational pressures without joint degradation. The integrated push-in locking mechanics allow for instant, tool-free tube insertion and permanent retention.

The integrated 360-degree swivel interface allows for perfect directional orientation and alignment during assembly, simplifying complex routing pathways. The right-angle internal bore is aerodynamically swept to eliminate restrictive air turbulence, avoiding performance-limiting pressure drops. This durable elbow fitting reduces installation labor, eliminates tube kinking, and ensures a prolonged, maintenance-free service life.

• Tough composite-to-metal design delivers superior structural durability and resists cracking under heavy continuous vibration.
• Smooth right-angle interior profile eliminates restrictive fluid turbulence, ensuring maximum volumetric efficiency for pneumatic actuators.
• High-tensile gripping ring secures flexible lines firmly, preventing dangerous tube slip-outs under sudden pressure shocks.
• Full 360-degree swivel capability allows optimal angle adjustment, eliminating severe tube stress and kinking damage.
• Pre-coated male threads speed up structural assembly, ensuring a reliable leak-proof seal without extra tape labor.
• Advanced internal sealing rings maintain full pressure containment, minimizing energy losses and enhancing plant safety.
• Compact right-angle architecture enables neat low-profile plumbing configurations, maximizing available work envelope space.
