This heavy-duty 90-degree swivel elbow fitting provides a dependable, leak-free connection for adaptive fluid line tracking in high-capacity compressed air distribution layouts. Built with a high-strength polymer upper body and a precision-machined heavy-duty threaded metallic shank, it handles extreme lateral strain and high operational pressures without joint degradation. The integrated push-in locking mechanics allow for instant, tool-free tube insertion and permanent retention.
The integrated 360-degree swivel interface allows for perfect directional orientation and alignment during assembly, simplifying complex routing pathways. The right-angle internal bore is aerodynamically swept to eliminate restrictive air turbulence, avoiding performance-limiting pressure drops. This durable elbow fitting reduces installation labor, eliminates tube kinking, and ensures a prolonged, maintenance-free service life.
- Toughened polymer-and-metal housing layout guarantees exceptional mechanical resistance against external side-loading and operational vibrations.
- Smooth right-angle interior profile eliminates restrictive fluid turbulence, ensuring maximum volumetric efficiency for pneumatic actuators.
- High-tensile stainless steel claw rings anchor lines permanently, preventing accidental tube detachment during intense dynamic surges.
- Full 360-degree swivel capability allows optimal angle adjustment, eliminating severe tube bending stress and kinking damage.
- Pre-applied thread sealant or precision face seals accelerate mounting, preventing over-tightening damage during initial installation.
- Positive internal compound seals isolate continuous pneumatic pressures completely, supporting safe operator environments and efficiency.
- Compact right-angle architecture enables neat low-profile plumbing configurations, maximizing available work envelope space safely.

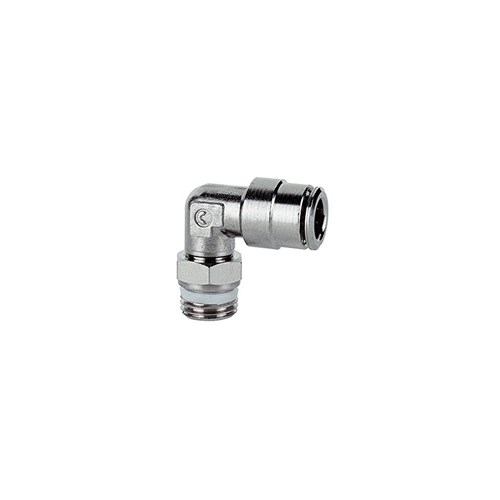

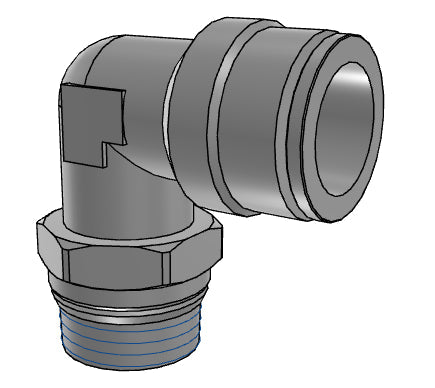

| Part No | P6520-08-06 |
| Product Type | 1/2" TUBE X 3/8" MNPT SWVL, ELBOW 90 |
| Supplier Name | Camozzi Automation, Inc. |
| Application | Main system cylinder connections and large-diameter directional air routing in manufacturing frames |
| Function | Right-angle adaptation of a female 3/8-inch NPT port to 1/2-inch flexible polymer lines |
| Compatibility | Standard fractional 1/2-inch outside diameter tubing and matching female NPT port manifolds |
| Installation Type | Threaded male NPT shank with an opposite instantaneous push-in connection receiver |
| Compatible Media | Filtered compressed air, industrial vacuum setups, and inert processing gases |
| Material | Industrial nickel-plated brass base paired with an engineered polymer elbow block and NBR seals |
| Operating Condition | Dynamic automation cells exposed to continuous cyclic movement and significant external vibration |
| Performance Feature | Swept interior right-angle path delivering high volumetric efficiency with full 360-degree rotational flexibility |
