Camozzi Automation, Inc.

P6520-08-08

P6520-08-08

Regular price $9.40 USD
Regular price Sale price $9.40 USD
Sale Sold out
  • Manufacturer Part #P6520-08-08
  • Unit Size 1
  • Brand Camozzi Automation, Inc.

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

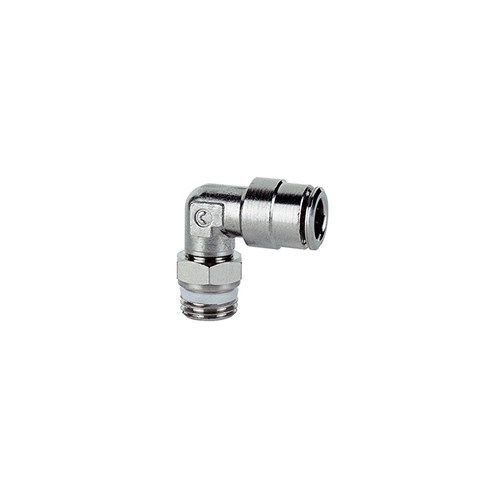

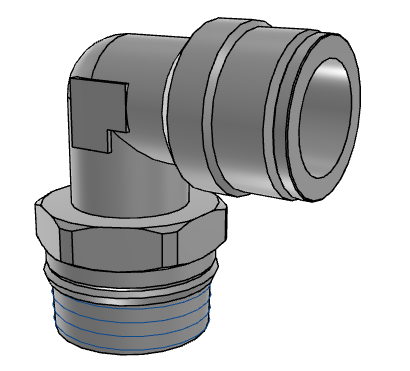

The Camozzi 1/2" Tube x 1/2" NPT Male Swivel 90 Elbow pneumatic fitting is designed for connecting a 1/2" NPT male threaded port to a 1/2" push-to-connect tube at a right angle. Made entirely from nickel-plated brass, it ensures high durability and corrosion resistance. The swivel feature facilitates easy installation and adjustment without stressing the tubing, making it ideal for flexible pneumatic system configurations.

  • 90 elbow design with male swivel connection
  • Connects 1/2" NPT male thread to 1/2" push-to-connect tube
  • Constructed from nickel-plated brass for durability and corrosion resistance
  • No internal hex, providing a smooth external profile
  • Operating pressure range: -0.95 to 10 bar (-13.78 to 145.04 psi)
  • Operating temperature range: -20C to 80C (-4F to 175F)
  • Standard size fitting, packaged in boxes of 10 units
Design Elbow - Male - Swivel
Box Quantity 10
Connection Size - Port 1 1/2 in
Connection Type - Port 1 NPT Male
Connection Size - Port 2 1/2 in
Connection Type - Port 2 Push-to-Connect Imperial
Internal Hex No
Material - Base/Threaded Portion Nickel-plated Brass
Material - Body/Non-threaded Portion Nickel-plated Brass
Material - Collar Nickel-plated Brass
Operating Pressure (Metric) -0.95 to 10 bar
Operating Pressure (Standard) -13.78 to 145.04 psi
Operating Temperature (C) -20 to 80 C
Operating Temperature (F) -4 to 175 F
Size Standard
