P6520-53-02

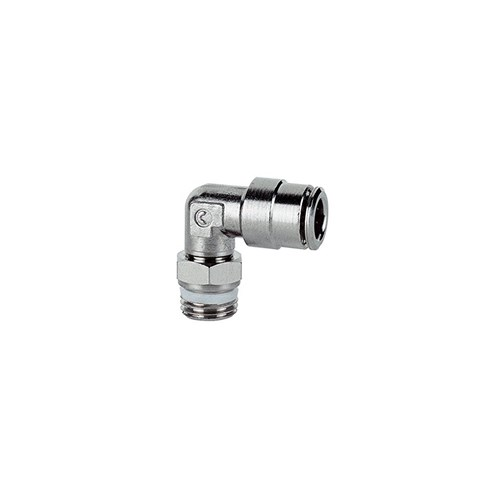

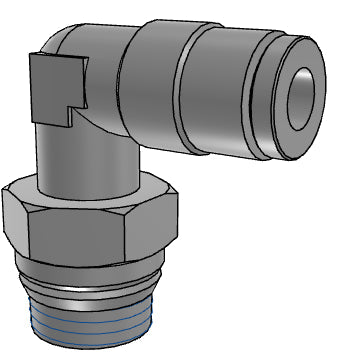

This high-performance 90-degree swivel elbow fitting combines a rugged male NPT threaded connection with a quick push-in tube port for precise directional routing. Machined with a robust metallic base and an integrated technical polymer body, it offers outstanding resistance to mechanical wear, chemical exposure, and high line pressures. The advanced internal sealing architecture provides absolute fluid isolation under heavy dynamic loading.

The built-in swivel mechanism provides full 360-degree rotational movement, allowing technicians to align line exits effortlessly during complex system plumbing. The internal elbow contour is precision-molded to eliminate fluid restriction, ensuring consistent power delivery to downstream cylinders. This versatile fitting accelerates machinery assembly, protects lines from kinking, and delivers an extensive service lifespan.

• Reinforced structural construction resists external stress cracking and withstands high physical vibrations on heavy manufacturing machinery.
• Swept internal elbow radius minimizes fluid resistance, maintaining high downstream pneumatic tool pressure and system performance.
• Stainless steel grab ring ensures positive tube retention, eliminating dangerous pull-out failures under high pressure.
• Integrated 360-degree swivel mechanism permits easy orientation alignment during assembly, simplifying tricky tube routing paths.
• Pre-coated male threads speed up structural assembly, ensuring a reliable leak-proof seal without extra tape labor.
• Robust internal seal architecture blocks environmental contamination, protecting pressure stability and plant operational safety.
• Miniature space-saving envelope allows closer component grouping, maximizing productivity per square inch of control panel.
