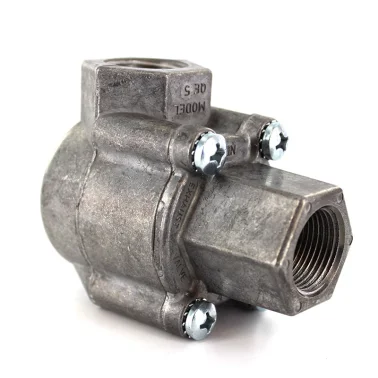

Humphrey 3/4 pipe QE5 large quick exhaust valve is versatile. Product redirects exhausting air to its high flow 3/4 pipe exhaust port by sensing pressure differential. May be used as a shuttle valve, or achieve excellent check or flow control function with addition of plug or orifice. Compact body has high flow capacity. Molded shuttle outperforms competitive sheet stock types.
- High airflow capacity Delivers up to 395 SCFM at 100 PSI for rapid exhaust in pneumatic systems.
- Versatile functionality Can be used as a quick exhaust valve, shuttle valve, or check valve with a plug.
- No lubrication required Maintenance-free design for cleaner and more reliable operation.
- Compact & durable build Die-cast aluminum body with molded internal shuttle ensures durability and performance.
- Wide operating range Handles pressures from 1 to 150 PSI and temperatures from -25F to 180F.
| Media | Air, Inert Gas |
| Valve Function | Quick Exhaust |
| Piping Type | Inline, Direct Piping |
| Port Size | 3/4 NPT |
| Number of Ports | 3 Ports |
| Number of Positions | 2 Positions |
| Options Included | Use as Shuttle Valve, Plug Exh Port for Use as Check Valve |
| Approx Size (in.) H W D | 3.66 2.18 2.95 |
| Type of Operation | Pressure Differential |
| Flow - SCFM @ 100 psig | 395 |
| Flow - LPM @ 6.9 bar | 11185 |
| ESEOD (Orifice) - in. (mm) | 0.605 (15.37) |
| Flow Coefficient (Cv) | 6.58 |
| Lubrication | Not Required |
| Pressure Range (psi) | 1 to 150 |
| Ambient Temperature Range (F) | -25~180 |
| Wetted Materials | Aluminum Diecast, Polyurethane |
| Weight (oz) | 15 |
