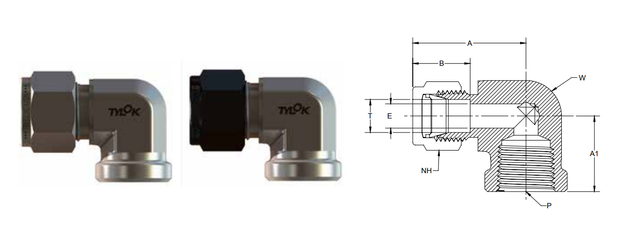

The SS-12-DFE-12 is a 90-degree stainless steel tube fitting designed to connect 3/4" CBC tubing to a 3/4" FNPT threaded port. Its elbow configuration allows efficient directional changes in fluid systems where space constraints require compact routing. Precision-manufactured to Tylok standards, this fitting ensures dependable leak-tight sealing, corrosion resistance, and structural durability. It is ideal for hydraulic, pneumatic, and instrumentation applications requiring secure tube-to-female pipe connections under demanding high-pressure operating conditions.
- 90-degree elbow design enables compact and efficient system routing
- Stainless steel construction provides corrosion resistance and durability
- Precision-machined FNPT threads ensure reliable leak-tight sealing
- Designed for high-pressure hydraulic and instrumentation systems
- Supports secure tube-to-female pipe threaded connections
- Withstands demanding industrial temperature and pressure conditions
- Manufactured to Tylok quality standards for consistent performance
| Item ID | SS-12-DFE-12 |
| Product Type | 90� Tube to FNPT Elbow Adapter |
| Supplier Name | Tylok International |
| Application | Connects 3/4"" CBC tube to 3/4"" FNPT threaded ports |
| Kit Function | Provides secure angled tube-to-female pipe transition |
| Compatibility | Designed for 3/4"" OD CBC tubing and 3/4"" FNPT connections |
| Installation Type | 90-degree elbow configuration |
| Compatible Media | Air, gas, oil, water, and compatible industrial fluids |
| Valve Type | Not applicable - mechanical fitting component |
| Material | Corrosion-resistant stainless steel construction |
| Pressure Rating | Suitable for high-pressure hydraulic and instrumentation systems |
