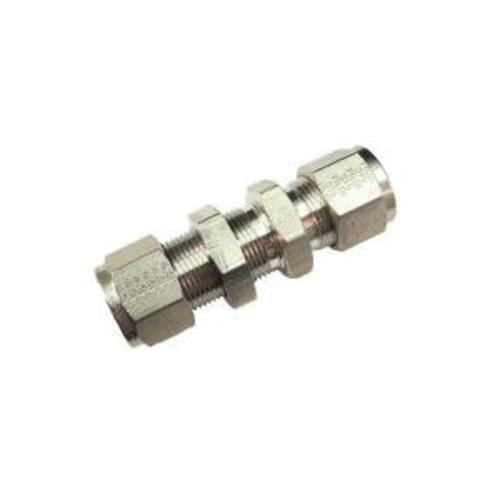

Tylok® CBC-Lok® Bulkhead Union, Double Ferrule, Series: DBHU, Fitting/Connector Type: Union, 1/4 in Nominal Size, Tube, 5/8 in Hex, 2.27 in Length, 316 Stainless Steel, Domestic.
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
- Double ferrule swaging action
- Total component interchangeability
- Heat code traceable
- ASTM material construction
- 1/4-18 NPT pipe thread
- 90 Rb hardness
- Interchanges with 400-61 and 4BC4
| Brand | Tylok® |
| Manufacturer Name | Tylok International |
| Series | DBHU |
| Type | Double Ferrule |
| Fitting/Connector Type | Union |
| Nominal Size | 1/4 in |
| End Style | Tube |
| Material | 316 Stainless Steel |
| Hex Size | 5/8 in |
| Length | 2.27 in |
| Weight | 0.07 lbs |
| Warranty | 12 Months Limited |
| Domestic/Import | Domestic |
| Country of Origin | US |
| Standards and Approvals |
ASTM A276 / ASME-SA-479 / Type 316-SS Bar Stock ASME-SA-182 / Type 316-SS Forging ASTM A213 / ASTM A269 Tubing ABS ASTM F1387 Canadian Registration ISO 9001:2008 |
