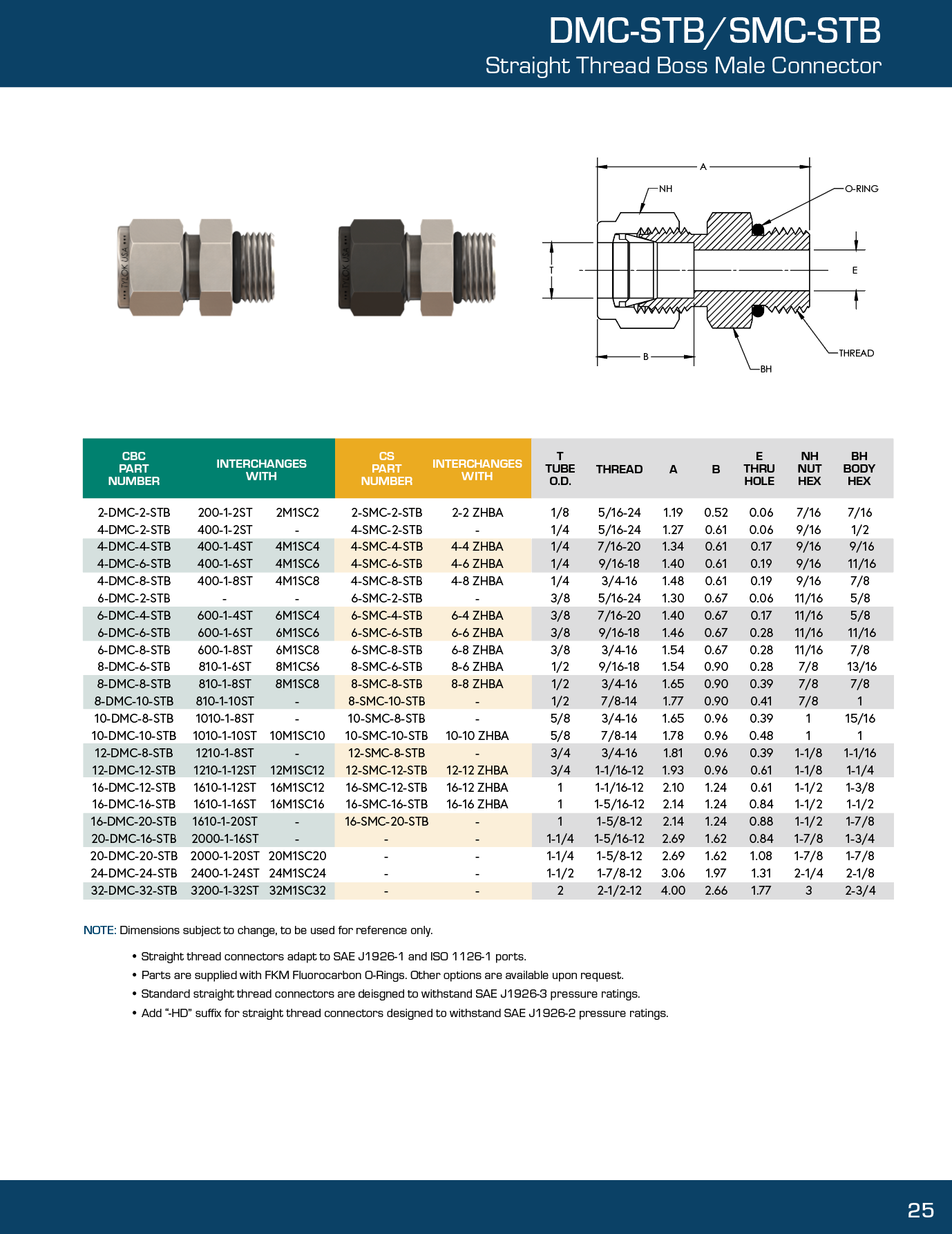

Tylok® CBC-Lok® Straight Thread Boss Male Connector, Double Ferrule, Series: DMC-STB, 1/4 in Tube x #6 MORB (9/16-18 SAE), 11/16 in Hex, 316 Stainless Steel, Domestic.
The Tylok® SS-4-DMC-6-STB is a precision-engineered connector designed for use with SAE straight thread boss ports. Featuring a 1/4" tube end and #6 MORB thread, it delivers secure, leak-tight performance in demanding applications. Made from 316 stainless steel, this CBC-Lok® fitting is fully interchangeable with Swagelok® and Parker A-Lok® components and is proudly manufactured in the U.S.A. under strict quality standards.
- Double-ferrule system for robust, leak-tight seals
- Straight thread boss (MORB) with O-ring face seal
- Compatible with Swagelok® and Parker A-Lok® interfaces
- Heat code traceable 316 SS components
- Factory-milled hex and nut dimensions for proper torquing
- Fully manufactured in the USA under ISO 9001 standards
| Tube Size | 1/4" |
| Thread Type | #6 MORB — 9/16"-18 SAE Straight Thread Boss |
| Ferrule System | Double-Ferrule CBC-Lok® |
| Material | 316 Stainless Steel |
| Hex Size | 11/16" |
| Length | 2.13" |
| Weight | 0.09 lbs |
| Series | DMC-STB |
| Origin | Made in USA |
| Standards Compliance |
ASTM A276 ASME-SA-479 ASTM F1387 ISO 9001:2008 ABS CRN |
