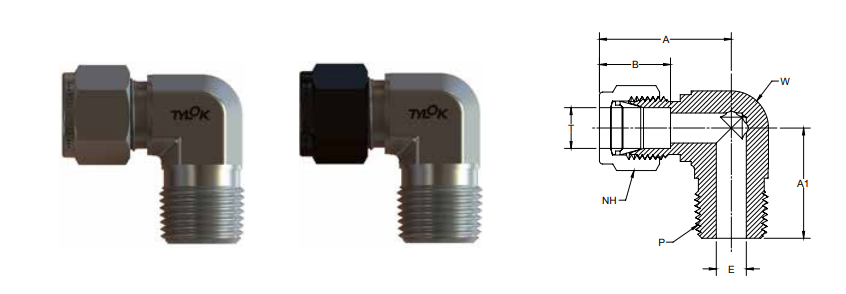

The SS-6-DME-2 is a 90-degree elbow adapter designed to connect 3/8 inch instrumentation tubing to a 1/8 inch Male NPT threaded port. Manufactured from stainless steel, it provides secure compression sealing on the tube side and reliable tapered thread engagement on the MNPT end. The elbow configuration allows directional change in compact system layouts while maintaining pressure integrity. Suitable for hydraulic, pneumatic, and process systems, this fitting helps reduce leakage risk, tubing stress, and improper installation in confined industrial assemblies.
- 3/8" compression tube end ensures secure sealing
- 1/8" MNPT threaded connection for pipe ports
- 90-degree elbow supports directional routing
- Stainless steel body resists corrosion
- Precision threads improve installation fit
- Suitable for hydraulic and pneumatic use
- Reduces tubing stress and leak risk
| Item ID | SS-6-DME-2 |
| Product Type | Elbow Adapter |
| Supplier Name | Tylok International |
| Material | Stainless Steel |
| Connection Type | Tube x MNPT |
| Installation Type | 90 Degree |
| Compatible Media | Air Fluids |
| Application | Instrumentation Systems |
| Pressure Rating | High Pressure |
