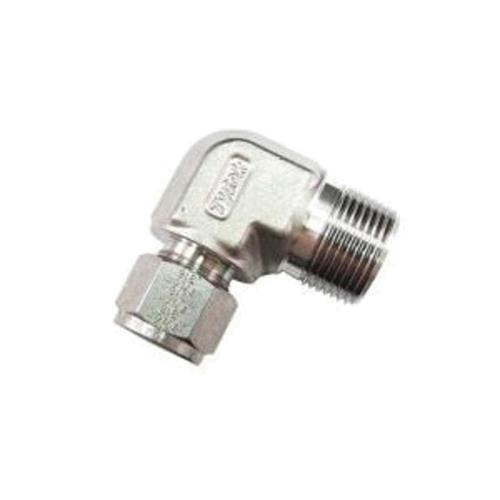

Tylok CBC-Lok Male Elbow, Double Ferrule, Series: DME, Fitting/Connector Type: 90 Elbow, 3/8 x 1/4 in Nominal Size, Tube x MNPT, 316 Stainless Steel, Domestic.
CBC-Lok tube fittings are fully interchangeable with Swagelok and Parker A-Lok. Although it is always recommended to use all CBC-Lok components, intermixing CBC-Lok bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok Tube Fittings are made to strict quality control standards. CBC-Lok Tube Fittings are proudly made in the U.S.A.
- Double ferrule swaging action
- Total component interchangeability
- Heat code traceable
- 11/16 in nut
- 1/4-18 NPT pipe thread
- 90 Rb hardness
- Interchanges with 600-2-4 and 6MSEL4N
| Brand | Tylok |
| Manufacturer Name | Tylok International |
| Series | DME |
| Type | Double Ferrule |
| Fitting/Connector Type | 90 Elbow |
| Nominal Size | 3/8 x 1/4 in |
| End Style | Tube x MNPT |
| Material | 316 Stainless Steel |
| Weight | 0.12 lbs |
| Warranty | 12 Months Limited |
| Domestic/Import | Domestic |
| Country of Origin | US |
| Standards and Approvals |
ASTM A276 / ASME-SA-479 / Type 316-SS Bar Stock ASME-SA-182 / Type 316-SS Forging ASTM A213 / ASTM A269 Tubing ABS ASTM F1387 Canadian Registration ISO 9001:2008 |
