Tylok CBC-Lok tube fittings are fully interchangeable with Swagelok and Parker A-Lok. Although it is always recommended to use all CBC-Lok components, intermixing CBC-Lok bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok Tube Fittings are made to strict quality control standards. CBC-Lok Tube Fittings are proudly made in the U.S.A.

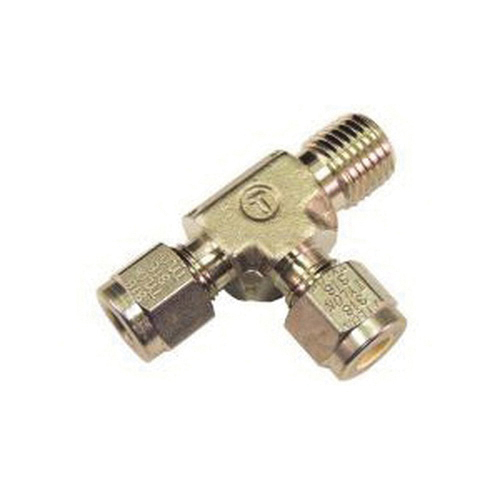

Tylok CBC-Lok Male Run Tee, Double Ferrule, Series: DTMT, 3/8 in Nominal Size, Tube x MNPT x Tube, 2.379 in Length, -20 to 1000 deg F, Stainless Steel, Domestic.
- Total component interchangeability
- Heat code traceable
- 11/16 in hex nut
- 90 Rb hardness
- 0.281 in thru hole
- Double ferrule swaging action system
| Brand | Tylok |
| Manufacturer Name | Tylok International |
| Series | DTMT |
| Domestic/Import | Domestic |
| End Style | Tube x MNPT x Tube |
| Fitting/Connector Type | Tee |
| Length | 2.379 in |
| Material | Stainless Steel |
| Nominal Size | 3/8 in |
| Temperature Rating | -20 to 1000 F |
| Type | Double Ferrule |
