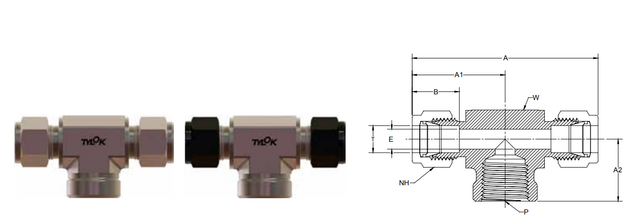

The SS-6-DTTF-4 is a branch tee fitting designed to connect 3/8 inch instrumentation tubing with a 1/4 inch Female NPT branch port. Constructed from stainless steel, it enables safe distribution of fluids within industrial systems. The compression tube ends ensure secure sealing, while the FNPT branch supports reliable threaded integration. Suitable for hydraulic and pneumatic applications, this fitting helps minimize leakage, pressure loss, and improper installation risks.
- 3/8" compression tube run connections
- 1/4" FNPT branch threaded outlet
- Branch tee supports fluid distribution
- Stainless steel resists corrosion
- Secure compression sealing mechanism
- Suitable for hydraulic systems
- Reduces leak and pressure loss risk
| Item ID | SS-6-DTTF-4 |
| Product Type | Branch Tee |
| Supplier Name | Tylok International |
| Material | Stainless Steel |
| Connection Type | Tube x FNPT |
| Installation Type | Tee Fitting |
| Compatible Media | Air Fluids |
| Application | Process Systems |
| Pressure Rating | High Pressure |
