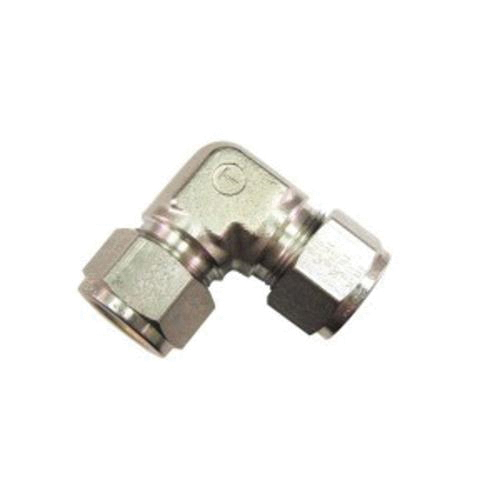

Tylok® CBC-Lok® Union Elbow, Double Ferrule, Series: DELU, Fitting/Connector Type: 90 deg Elbow, 1/2 in Nominal Size, Tube, 316 Stainless Steel, Domestic.
CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although it is always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.
- Double ferrule swaging action
- Total component interchangeability
- Heat code traceable
- 7/8 in nut
- 1/2-14 NPT pipe thread
- 90 Rb hardness
- Interchanges with 810-9 and 8EE8
| Brand | Tylok® |
| Manufacturer Name | Tylok International |
| Series | DELU |
| Type | Double Ferrule |
| Fitting/Connector Type | 90° Elbow |
| Nominal Size | 1/2 in |
| End Style | Tube |
| Material | 316 Stainless Steel |
| Weight | 0.23 lbs |
| Warranty | 12 Months Limited |
| Domestic/Import | Domestic |
| Country of Origin | US |
| Standards and Approvals |
ASTM A276 / ASME-SA-479 / Type 316-SS Bar Stock ASME-SA-182 / Type 316-SS Forging ASTM A213 / ASTM A269 Tubing ABS ASTM F1387 Canadian Registration ISO 9001:2008 |
