Tylok® CBC-Lok® tube fittings are fully interchangeable with Swagelok® and Parker A-Lok®. Although itis always recommended to use all CBC-Lok® components, intermixing CBC-Lok® bodies and/or component parts with that of other manufacturers will not adversely affect sealing ability. Tylok® CBC-Lok® Tube Fittings are made to strict quality control standards. CBC-Lok® Tube Fittings are proudly made in the U.S.A.

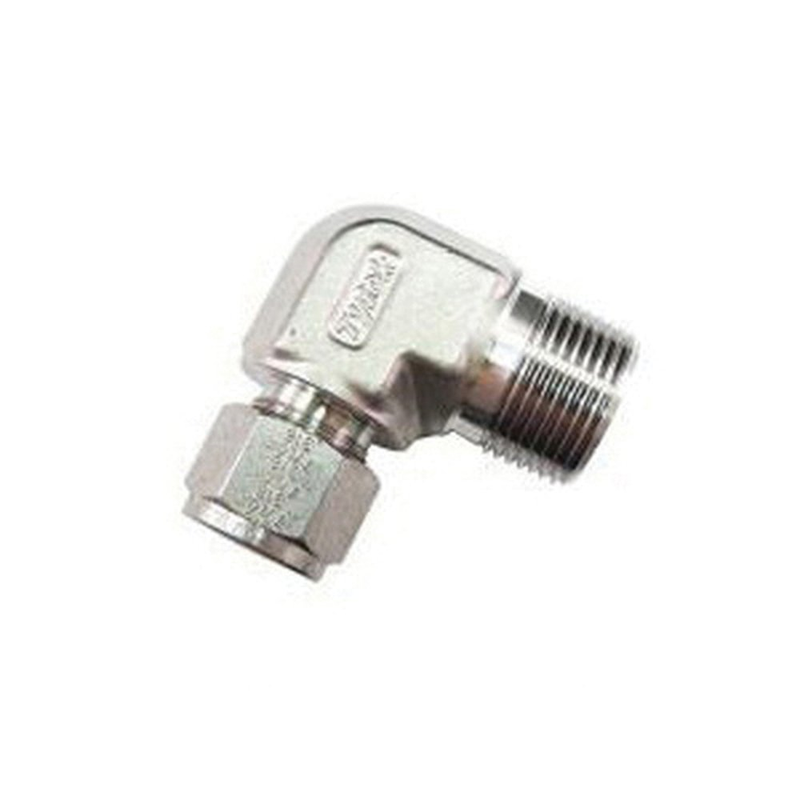

CBC-Lok® Male Elbow, Double Ferrule, Series: DME, 90 deg Elbow Fitting/Connector, 1/2 x 1/8 in Nominal, Tube x MNPT End Style, -20 to 1000 deg F, Stainless Steel, Domestic.
- Total component interchangeability
- Heat code traceable
- 7/8 in hex nut
- 90 Rb hardness
- 0.406 in thru hole
- Double ferrule swaging action system
| Brand Name | Tylok® |
| Manufacturer Part Number | SS-8-DME-12 |
| Series | DME |
| Type | Double Ferrule |
| Fitting Type | 90° Elbow |
| Nominal Size | 1/2 x 1/8 in |
| End Style | Tube x MNPT |
| Material | Stainless Steel |
| Temperature Rating | -20 to 1000° F |
| Domestic or Import | Domestic |
| Standards/Approvals |
ABS Type Approval Program ASTM A276 / ASME-SA-479 Bar Stock ASME-SA-182 Forging ASTM A213 / ASTM A269 Tubing ASTM F1387 Canadian Registration ISO 9001:2008 WBENC Certified |
