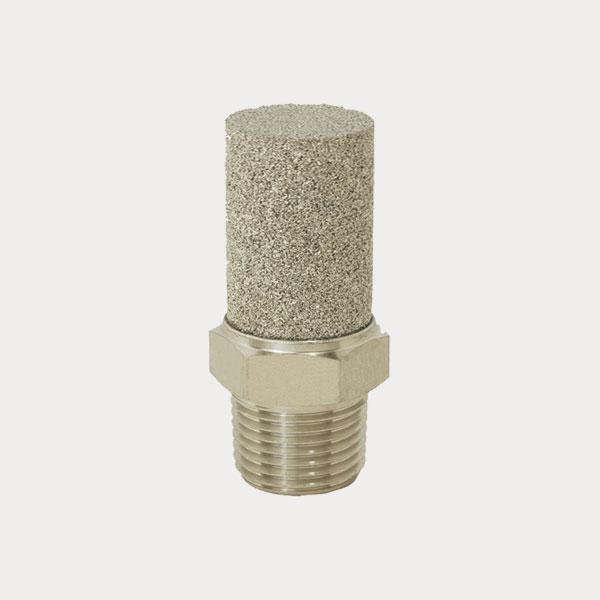

The Adsens SSBM-18 is a compact stainless steel muffler designed to reduce noise from pneumatic exhaust ports without compromising performance. With a 1/8 NPT thread connection, it's ideal for air valves and cylinders in tight or space-constrained setups. Built with a SUS303 stainless steel body and a 70-micron SUS316 filter element, this muffler ensures both durability and efficient sound dampening, even under high-pressure operation. Its corrosion-resistant design makes it suitable for use in demanding industrial environments.
- Compact 1/8 NPT design, perfect for tight pneumatic setups
- Built from SUS303 stainless steel for long-lasting durability
- 70-micron SUS316 filter element ensures efficient noise reduction
- Handles up to 300 psi and temperatures up to 392?F
- Corrosion-resistant and ideal for harsh industrial environments
| Specification | Details |
| Model | SSBM-18 |
| Thread Connection | 1/8 NPT |
| Body Material | SUS303 Stainless Steel |
| Element Material | SUS316 Stainless Steel with a 70-Micron Filter |
| Max Operating Pressure | 300 PSI (21.1 kg/cm²) |
| Operating Temperature Range | 35°F to 392°F (1.6°C to 200°C) |
| Overall Length | 1-3/32 in. |
| Hex Size | 1/2 in. |
| Weight | Approximately 0.53 oz |
