Adsens Technology, Inc.

SSBV-28

SSBV-28

Regular price $6.11 USD
Regular price Sale price $6.11 USD
Sale Sold out
  • Manufacturer Part #SSBV-28
  • Unit Size 1
  • Brand Adsens Technology, Inc.

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

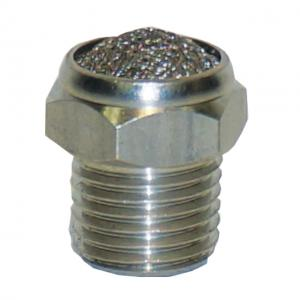

SSSBN-Series breather vents combine low profile and high air flow into a reality, suitable for many applications, particularly where space is limited. Special screen filter is formed by stainless steel wire, offers very high mechanical resistance, guaranteeing long life even under high pressure. 316 grade stainless steel fitting offers complete corrosion resistance.

Supplied with standard male pipe threads, they can be installed with little protrusion as a flat integral part of the equipment. Unit should be mounted in a protective position from excessive vibration. Use wrench on hex head to tighten unit to the device. Stainless steel wire screen can be easily cleaned by reversing the flow of the filtered matter.

  • Low-profile design with high airflow capacity
  • best use for compact spaces and equipment
  • Constructed with 316-grade stainless steel for maximum corrosion resistance
  • Durable stainless steel wire screen filter ensures long life under high pressure
  • Standard 1/4 male NPT thread for easy installation
  • Flush-mounted with minimal protrusion
  • Easy maintenance: filter cleans easily by reversing flow
  • Hex head allows secure tightening with a wrench
  • Recommended to mount away from excessive vibration
Connection Type 1/4 Npt (National Pipe Thread)
Max Operating Pressure 150 Psi (10.55 Kg/Cm²)
Operating Temperature Ranges From 35°F To 392°F (1.6°C To 200°C)
Overall Length Approximately 3/4 in.
Weight About 0.54 Ounces (15.24 Grams)
Compatibility Suitable For Various Fluids Including Air, Oil, And Water
Mfg Part Sssbn-28-316
Supplier Adsens Technology
