This professional-grade 4-way air valve is designed to manage the advance and retract cycles of double-acting pneumatic actuators with exceptional precision. Manufactured from high-strength metallic alloy components and wear-resistant elastomers, its rugged layout withstands punishing external forces and continuous multi-axis vibration. The high-capacity internal flow paths deliver consistent, unrestricted air velocities across complex circuit configurations.
Engineered for convenient panel or bracket mounting layouts, this compact valve maximizes spatial efficiency in crowded machinery frameworks. Its dependable sealing structure completely isolates fluid pressures, safeguarding operators and protecting continuous operational parameters from pressure decay. This resilient directional valve drives excellent machine throughput and provides a prolonged, maintenance-free service life.
- Heavy-duty structural metal composition offers superior resistance to mechanical wear and guards against accidental impact damage.
- Straight high-flow internal path geometry maximizes volumetric displacement, optimizing attached pneumatic actuator performance parameters.
- Advanced sealing face capabilities eliminate potential fugitive air emissions, preserving operational system equilibrium and safety.
- Versatile porting configuration adapts smoothly to standard fractional plumbing systems, machinery tracks, and manifold blocks.
- Pre-drilled body mounting holes enable rapid inline installation or quick component swaps, reducing setup labor hours.
- Pressure-tested structural architecture guards operators from blowouts, maintaining safe production cell operations under severe cyclic loads.
- Fatigue-resistant internal components extend service longevity, driving lower total cost of ownership across the production facility.

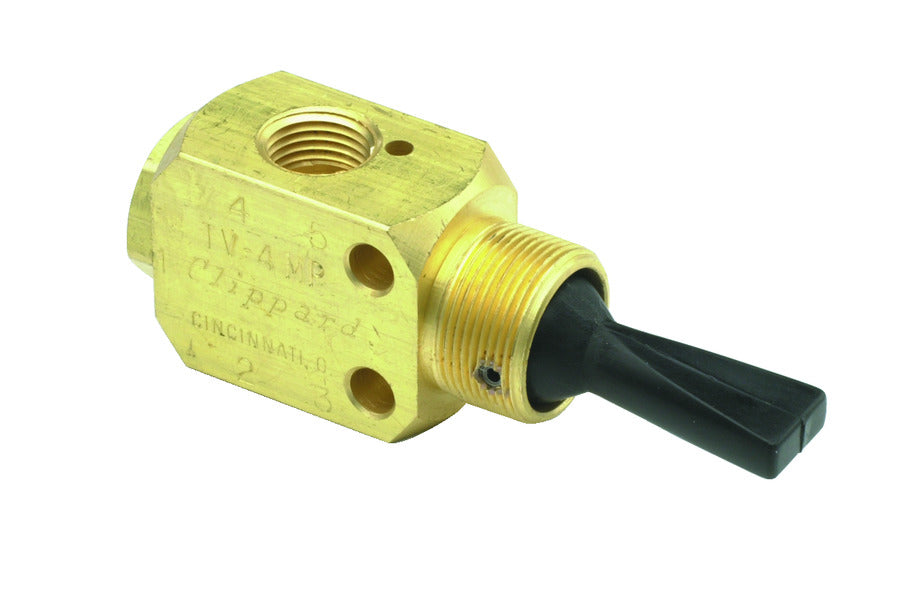

| Part No | TV-4MP |
| Product Type | 4-Way Air Valve |
| Supplier Name | Clippard Instrument Laboratory, Inc. |
| Application | Multi-directional flow control and stroke management for double-acting pneumatic cylinders |
| Function | 4-way mechanical path redirection of dual independent working fluid channels |
| Compatibility | Standard industrial air logic manifolds, cylinders, and multi-position directional control systems |
| Installation Type | Base manifold mounting or independent inline panel positioning using pre-formed holes |
| Compatible Media | Clean, dry filtered compressed air, inert process gases, and low-pressure technical air |
| Material | Premium alloy casing combined with ground stainless steel internal stems and NBR seals |
| Operating Condition | Demanding production facilities subject to high mechanical vibrations and continuous cyclic operation |
| Performance Feature | Balanced dual-path flow division paired with low manual toggle shifting force thresholds |
