SMC Corporation of America

VM230-N02-05A

VM230-N02-05A

Regular price $24.50 USD
Regular price Sale price $24.50 USD
Sale Sold out
  • Manufacturer Part #VM230-N02-05A
  • Unit Size 1
  • Brand SMC Corporation of America

Availability : Currently In Stock

Can’t Find The Product You Need? Just Ask Us! Get a Quote

View full details

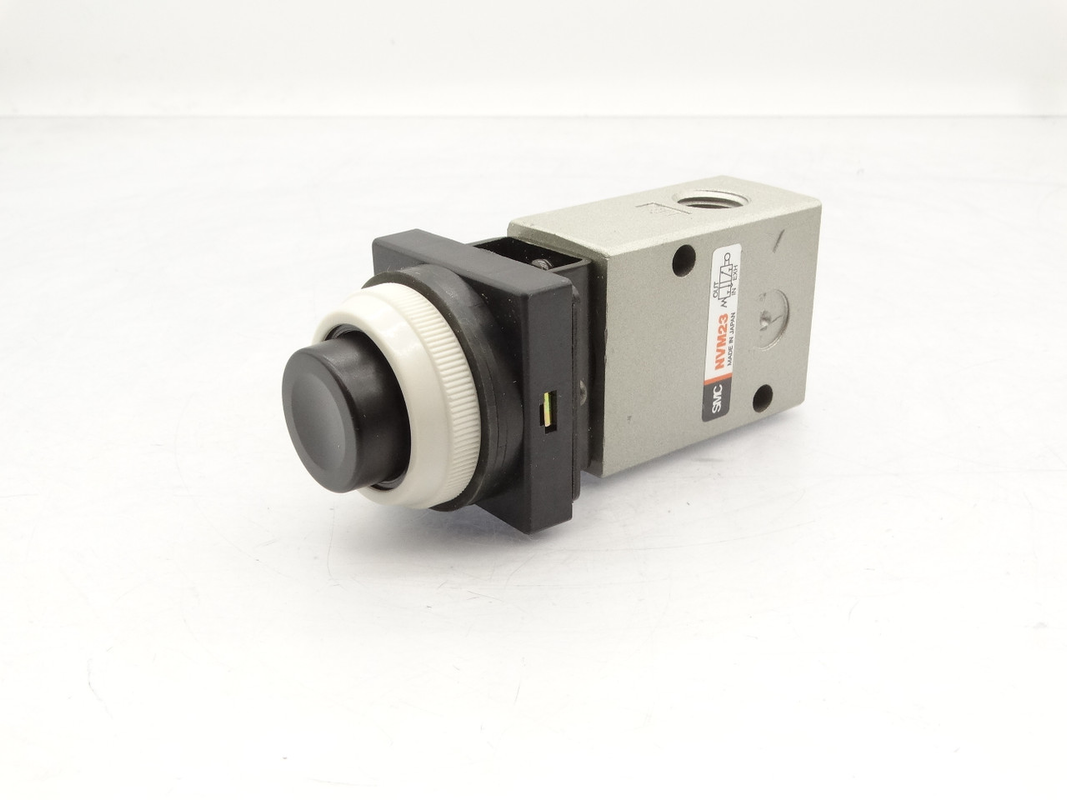

The SMC VM230-N02-05A is a mechanically operated 3-port valve from SMC's VM200 series, designed for pneumatic applications requiring manual actuation. Its compact design and robust construction make it suitable for various industrial environments.The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.

  • High flow capacity: Offers a flow capacity up to 1.0 Cv, ensuring efficient air flow.
  • Durable construction: Built to withstand demanding industrial environments.
  • Flexible mounting options: Side ported design allows for versatile mounting configurations.
  • Actuation: Available in various actuator styles to suit different operational needs.
  • Design: Requires minimal mounting space, ideal for applications with space constraints.
Series Vm200
Actuator Type Straight Plunger
Number Of Ports 3
Switching Positions 2-Position, Normally Closed
Port Size 1/4 Npt
Mounting Method Side Mounting
Operating Pressure Range 0 To 1.0 Mpa
Fluid Temperature Range -5C To 60C (No Freezing)
Effective Area (Cv) 19 Mm (1.0)
Weight Approximately 220 G
