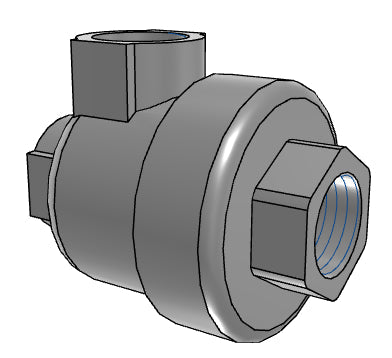

VSC-544-04

This industrial-grade quick exhaust valve is engineered to increase the cycling speed of pneumatic cylinders by venting exhausting air directly to the atmosphere at the cylinder port. Manufactured with a heavy-duty, corrosion-resistant body and a highly sensitive internal diaphragm, it shifts instantly upon pressure drop to redirect air away from the main control valve. The optimized internal flow path handles massive volumetric exhaust volumes safely and efficiently.

By eliminating the restrictive backpressure caused by long travel runs back to a control manifold, this valve dramatically improves operational response times and machinery throughput. Its compact, lightweight footprint allows for direct mounting onto cylinder ports without adding undue stress to the assembly. This robust valve ensures long-term operational reliability and significantly reduces wear on downstream control assets.

• Heavy-duty structural metal body delivers superior wear resistance and tolerates high mechanical vibration on heavy automation machinery.
• Advanced low-inertia internal dump mechanics vent exhaust air instantly, maximizing stroke switching speeds and system output.
• Premium synthetic compound diaphragms ensure an absolute seal during supply phases while responding immediately to pressure drops.
• Integrated high-flow venting ports accommodate optional silencers, protecting operators by maintaining safe, low workplace noise levels.
• Threaded male-to-female interface supports direct port mounting layout configurations, minimizing system bulk and plumbing installation labor.
• Pressure-balanced architecture eliminates erratic shifting under volatile supply spikes, securing continuous automated work cell safety profiles.
• Wear-resistant internal components reduce dynamic friction, extending operational longevity while lowering plant replacement expenditures over time.
